MPI 786 Contactless measurement system

MPI 786

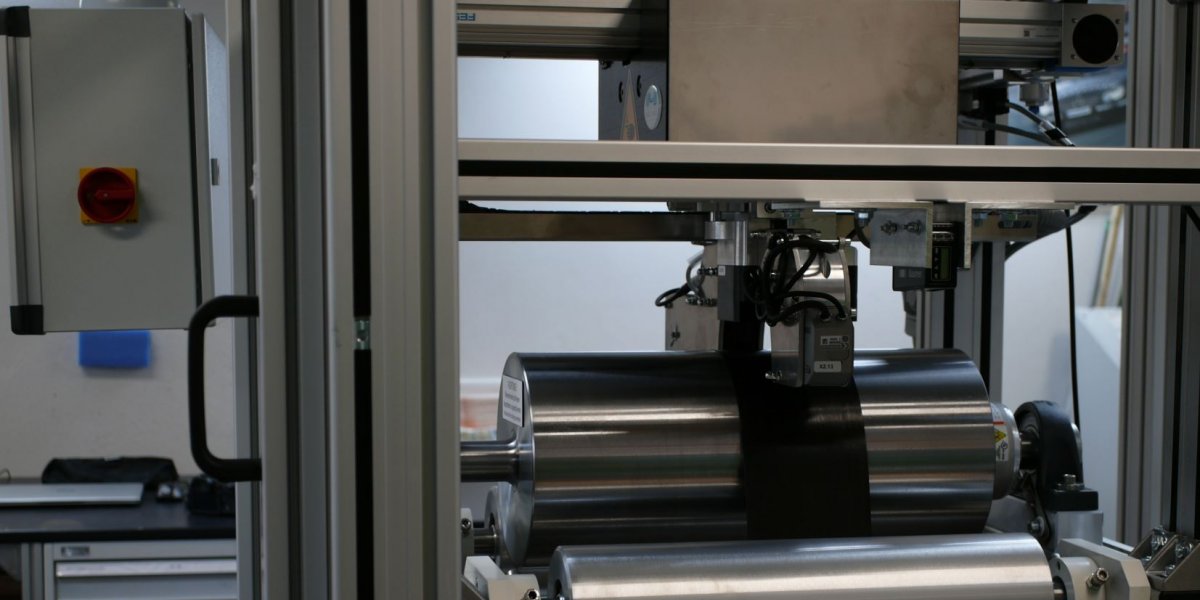

Our contactless ONLINE thickness measurement system for precise thickness measurement of all non-magnetic, also electrically conductive foils or other web-shaped goods, whose upper surface does not allow contact with a measuring sensor during production, where a small or larger wrap of the web on the measuring roller is allowed, such as foils made of PU, TPE, TPU, unvulcanized rubber, bitumen roofing membranes, lithium as well as membranes that are soft or sticky on one side, wet, etc. Composites:
UD-tapes, carbon and carbon fibre, glass fibre foils, Gas Diffusion Layers (GDL), embossed, nubbed foils, nets, technical textiles, linoleum, vinyl, non-woven, artificial leather, etc.

Measuring range 5 µm - 3.0 mm
Width of foil approx. 10 mm - 6.0 m

Other ranges on request.


*Bitte beachten Sie die Datenschutzerklärung.

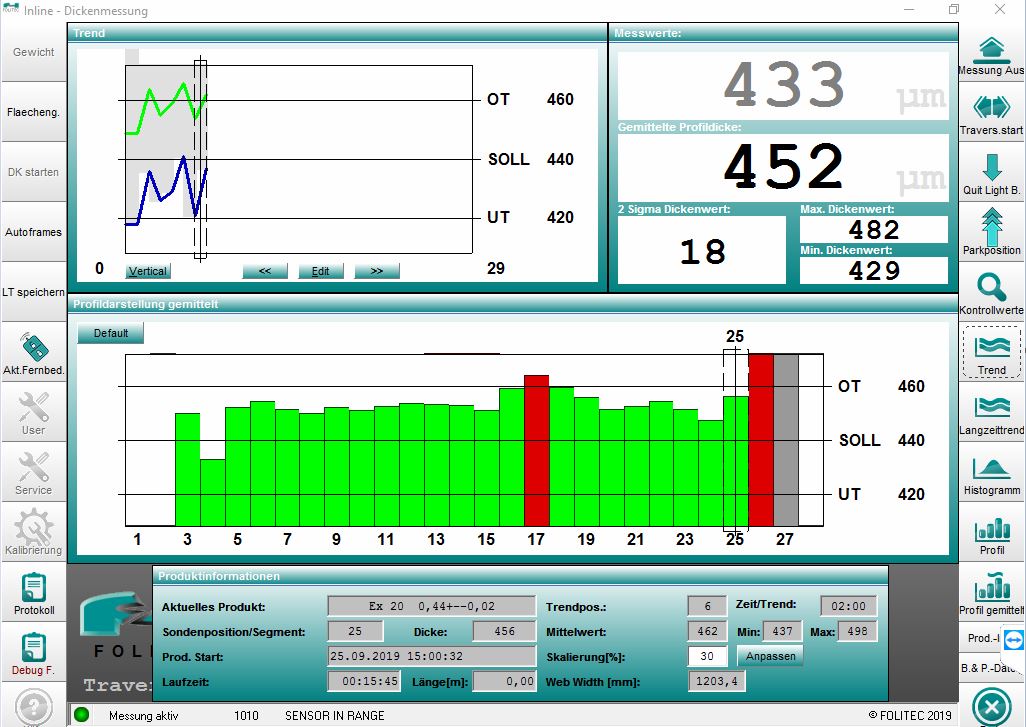

Current display of the measured values, here traversing measured.
MAPPING: Exact assignment of thickness value to screw / expansion bolt e.g. at a wide slot die.
Rolls / stacking protocol as trend display. Visualisation of thickness value to OEG / UEG.
Thickness values in correlation to grammage. Industrial communication of many single values by Profinet Siemens S7 e.g. OPC-UA. Automatic edge scanning for the detection of the maximum film width, automatic length measurement of the webs.
