3D construction CAD software.
With which parametric models, assemblies and drawings can be generated.
We use SolidWorks and can accompany you from the sketch to the finished part.
3D - Print
Maximum dimension of the components: W x H x D = 400 x 300 x 300 mm
Filaments Consumer-grade: PLA, ABS, PET-G, HIPS, PVA, etc.
Industrial-grade: Glass / Carbon fiber, Nylon+, PC, ASA, TPU/E, PP, etc.
High Performance: Metal fill, Ultem, PEEK, etc.

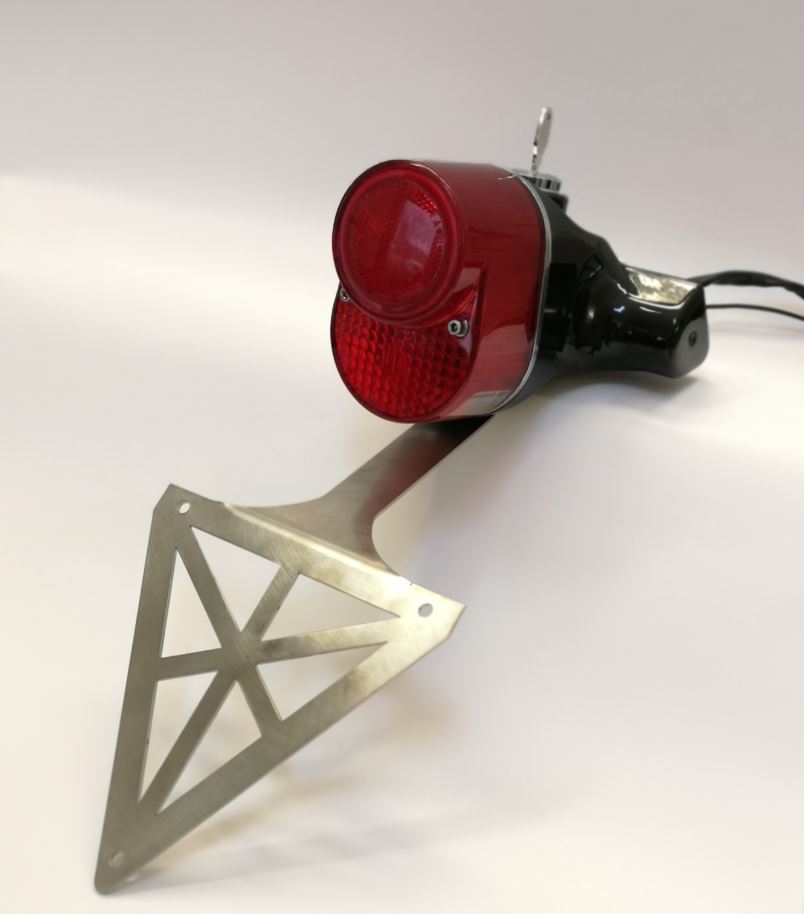

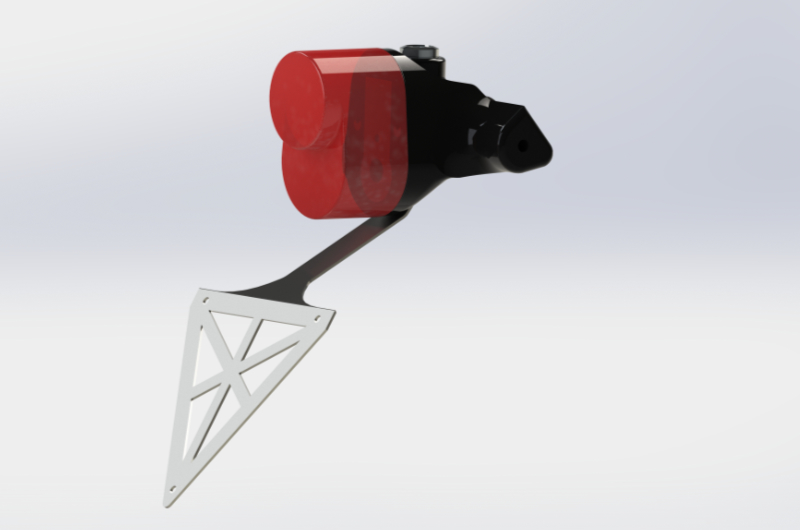

For the rear light of a vintage motorcycle, a low cost PETG plastic was used.
With welded-in thread inserts and a V2A 3D-bent part,
the individual parts could be assembled to a complete unit.
A subsequent painting rounds off the overall result.
3D printing possibilities for PEEK are particularly interesting.
This material is very expensive as a raw material.
With conventional machining processes
such as turning and milling, a lot of waste is produced depending on the contour.
Simple and complex components become unnecessarily expensive as a result.
With our PEEK 3D - print, costs can be saved here.
